Multilevel Transmon
In this example we will look at a multilevel transmon qubit with a Hamiltonian given by
\[\hat{H}(t) = -\frac{\delta}{2} \hat{n}(\hat{n} - 1) + u_1(t) (\hat{a} + \hat{a}^\dagger) + u_2(t) i (\hat{a} - \hat{a}^\dagger)\]
where $\hat{n} = \hat{a}^\dagger \hat{a}$ is the number operator, $\hat{a}$ is the annihilation operator, $\delta$ is the anharmonicity, and $u_1(t)$ and $u_2(t)$ are control fields.
We will use the following parameter values:
\[\begin{aligned} \delta &= 0.2 \text{ GHz}\\ \abs{u_i(t)} &\leq 0.2 \text{ GHz}\\ T_0 &= 10 \text{ ns}\\ \end{aligned}\]
For convenience, we have defined the TransmonSystem function in the QuantumSystemTemplates module, which returns a QuantumSystem object for a transmon qubit. We will use this function to define the system.
Setting up the problem
To begin, let's load the necessary packages, define the system parameters, and create a a QuantumSystem object using the TransmonSystem function.
using QuantumCollocation
using PiccoloQuantumObjects
using NamedTrajectories
using LinearAlgebra
using SparseArrays
using Random; Random.seed!(123)
using PiccoloPlots
using CairoMakie
# define the time parameters
T₀ = 10 # total time in ns
T = 50 # number of time steps
Δt = T₀ / T # time step
# define the system parameters
levels = 5
δ = 0.2
# add a bound to the controls
a_bound = 0.2
# create the system
sys = TransmonSystem(levels=levels, δ=δ)
# let's look at a drive
get_drives(sys)[1] |> sparse5×5 SparseArrays.SparseMatrixCSC{ComplexF64, Int64} with 8 stored entries:
⋅ 6.28319+0.0im ⋅ ⋅ ⋅
6.28319+0.0im ⋅ 8.88577+0.0im ⋅ ⋅
⋅ 8.88577+0.0im ⋅ 10.8828+0.0im ⋅
⋅ ⋅ 10.8828+0.0im ⋅ 12.5664+0.0im
⋅ ⋅ ⋅ 12.5664+0.0im ⋅ Since this is a multilevel transmon and we want to implement an, let's say, $X$ gate on the qubit subspace, i.e., the first two levels we can utilize the EmbeddedOperator type to define the target operator.
# define the target operator
op = EmbeddedOperator(:X, sys)
# show the full operator
op.operator |> sparse5×5 SparseArrays.SparseMatrixCSC{ComplexF64, Int64} with 2 stored entries:
⋅ 1.0+0.0im ⋅ ⋅ ⋅
1.0+0.0im ⋅ ⋅ ⋅ ⋅
⋅ ⋅ ⋅ ⋅ ⋅
⋅ ⋅ ⋅ ⋅ ⋅
⋅ ⋅ ⋅ ⋅ ⋅ In this formulation, we also use a subspace identity as the initial state, which looks like
function get_subspace_identity(op::EmbeddedOperator)
return embed(
Matrix{ComplexF64}(I(length(op.subspace))),
op.subspace,
size(op)[1]
)
end
get_subspace_identity(op) |> sparse5×5 SparseArrays.SparseMatrixCSC{ComplexF64, Int64} with 2 stored entries:
1.0+0.0im ⋅ ⋅ ⋅ ⋅
⋅ 1.0+0.0im ⋅ ⋅ ⋅
⋅ ⋅ ⋅ ⋅ ⋅
⋅ ⋅ ⋅ ⋅ ⋅
⋅ ⋅ ⋅ ⋅ ⋅ We can then pass this embedded operator to the UnitarySmoothPulseProblem template to create the problem
# create the problem
prob = UnitarySmoothPulseProblem(sys, op, T, Δt; a_bound=a_bound)
# solve the problemDirectTrajOptProblem
timesteps = 50
duration = 9.799999999999997
variable names = (:Ũ⃗, :a, :da, :dda, :Δt)
knot point dimension = 57
solve!(prob; max_iter=50) initializing optimizer...
applying constraint: timesteps all equal constraint
applying constraint: initial value of Ũ⃗
applying constraint: initial value of a
applying constraint: final value of a
applying constraint: bounds on a
applying constraint: bounds on da
applying constraint: bounds on dda
applying constraint: bounds on Δt
******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
Ipopt is released as open source code under the Eclipse Public License (EPL).
For more information visit https://github.com/coin-or/Ipopt
******************************************************************************
This is Ipopt version 3.14.19, running with linear solver MUMPS 5.8.1.
Number of nonzeros in equality constraint Jacobian...: 130578
Number of nonzeros in inequality constraint Jacobian.: 0
Number of nonzeros in Lagrangian Hessian.............: 11223
Total number of variables............................: 2796
variables with only lower bounds: 0
variables with lower and upper bounds: 246
variables with only upper bounds: 0
Total number of equality constraints.................: 2695
Total number of inequality constraints...............: 0
inequality constraints with only lower bounds: 0
inequality constraints with lower and upper bounds: 0
inequality constraints with only upper bounds: 0
iter objective inf_pr inf_du lg(mu) ||d|| lg(rg) alpha_du alpha_pr ls
0 6.3299435e-04 9.98e-01 1.21e+01 0.0 0.00e+00 - 0.00e+00 0.00e+00 0
1 1.7461331e+01 4.87e-01 3.66e+03 -0.6 1.02e+00 2.0 6.32e-01 5.00e-01h 2
2 1.1690187e+01 1.94e-01 6.11e+03 0.0 9.75e-01 2.4 1.00e+00 6.00e-01h 1
3 1.0956380e+00 1.36e-01 4.05e+03 -0.3 6.45e-01 2.9 1.00e+00 3.00e-01f 1
4 3.9110348e+00 1.13e-01 3.98e+03 -1.0 5.07e-01 3.3 1.00e+00 1.68e-01h 1
< ...snip... >
45 3.3045607e-01 3.45e-06 9.48e-02 -4.0 4.85e-03 0.9 1.00e+00 1.00e+00f 1
46 2.9815119e-01 2.50e-05 8.55e-02 -4.0 1.35e-02 0.4 1.00e+00 1.00e+00h 1
47 2.8948071e-01 3.32e-06 3.25e-02 -4.1 4.88e-03 0.8 1.00e+00 1.00e+00h 1
48 2.5998426e-01 2.55e-05 6.31e-02 -4.0 1.35e-02 0.3 1.00e+00 1.00e+00h 1
49 2.5126499e-01 3.58e-06 2.93e-02 -4.1 4.94e-03 0.8 1.00e+00 1.00e+00h 1
iter objective inf_pr inf_du lg(mu) ||d|| lg(rg) alpha_du alpha_pr ls
50 2.2337171e-01 2.87e-05 8.86e-02 -4.0 1.34e-02 0.3 1.00e+00 1.00e+00h 1
Number of Iterations....: 50
(scaled) (unscaled)
Objective...............: 2.2337171204275508e-01 2.2337171204275508e-01
Dual infeasibility......: 8.8610846418504252e-02 8.8610846418504252e-02
Constraint violation....: 2.8712906816219519e-05 2.8712906816219519e-05
Variable bound violation: 0.0000000000000000e+00 0.0000000000000000e+00
Complementarity.........: 1.0048178594192366e-04 1.0048178594192366e-04
Overall NLP error.......: 8.8610846418504252e-02 8.8610846418504252e-02
Number of objective function evaluations = 55
Number of objective gradient evaluations = 51
Number of equality constraint evaluations = 55
Number of inequality constraint evaluations = 0
Number of equality constraint Jacobian evaluations = 51
Number of inequality constraint Jacobian evaluations = 0
Number of Lagrangian Hessian evaluations = 50
Total seconds in IPOPT = 390.676
EXIT: Maximum Number of Iterations Exceeded.
Let's look at the fidelity in the subspace
fid = unitary_rollout_fidelity(prob.trajectory, sys; subspace=op.subspace, drive_name=:a)
println("Fidelity: ", fid)
@assert fid > 0.99Fidelity: 0.9977791511191532and plot the result using the plot_unitary_populations function.

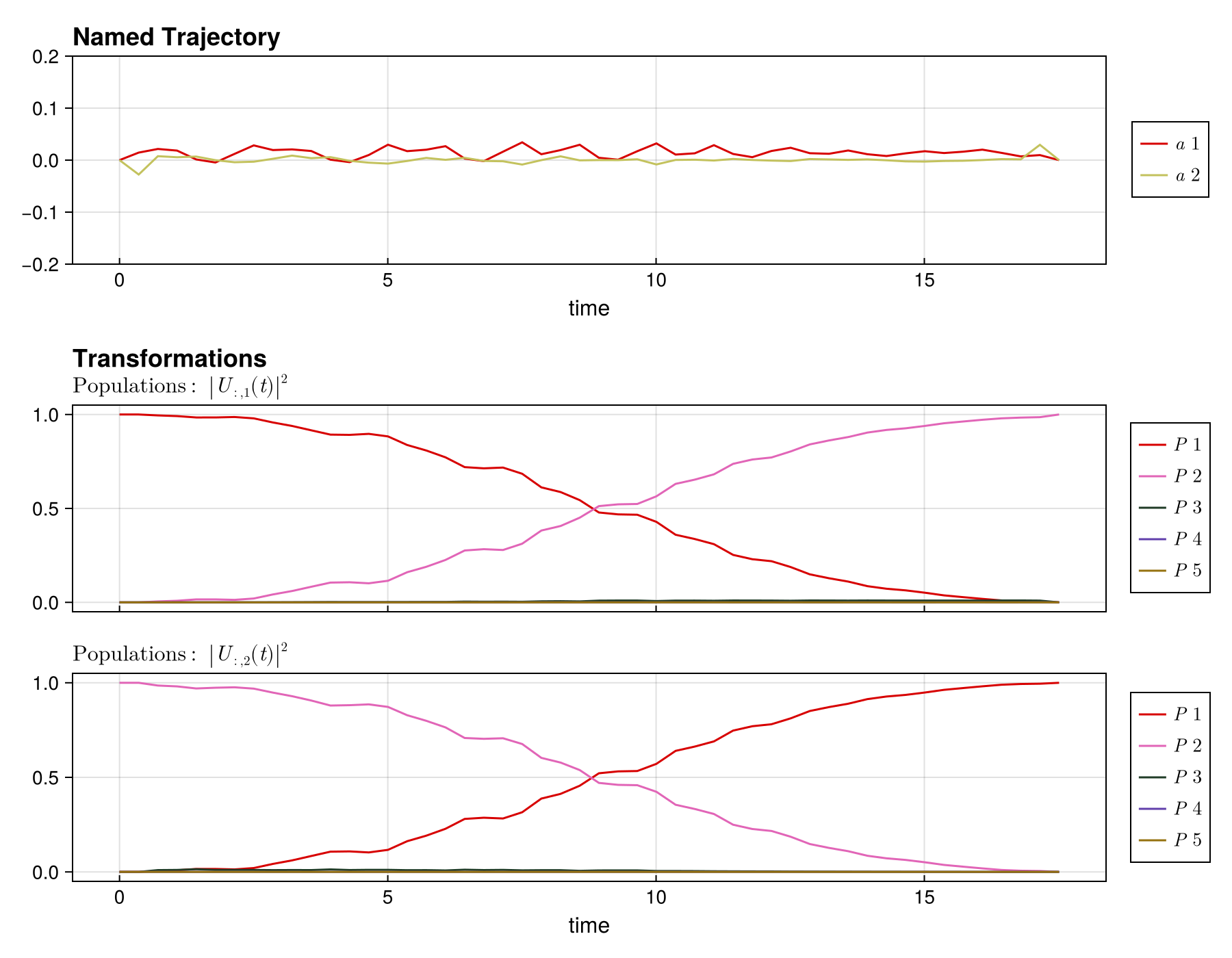

plot_unitary_populations(prob.trajectory; fig_size=(900, 700), control_name=:a)
Leakage suppresion
As can be seen from the above plot, there is a substantial amount of leakage into the higher levels during the evolution. To mitigate this, we have implemented a constraint to avoid populating the leakage levels, which should ideally drive those leakage populations down to zero. To implement this, pass leakage_constraint=true and set leakage_constraint_value={value} and leakage_cost={value} to the PiccoloOptions instance passed to the UnitarySmoothPulseProblem template.
# create the a leakage suppression problem, initializing with the previous solution
prob_leakage = UnitarySmoothPulseProblem(sys, op, T, Δt;
a_bound=a_bound,
a_guess=prob.trajectory.a[:, :],
piccolo_options=PiccoloOptions(
leakage_constraint=true,
leakage_constraint_value=1e-2,
leakage_cost=1e-2,
),
)
# solve the problem constructing UnitarySmoothPulseProblem...
using integrator: typeof(UnitaryIntegrator)
control derivative names: [:da, :dda]
applying leakage suppression: Ũ⃗ < 0.01
applying timesteps_all_equal constraint: Δtsolve!(prob_leakage; max_iter=250) initializing optimizer...
applying constraint: timesteps all equal constraint
applying constraint: initial value of Ũ⃗
applying constraint: initial value of a
applying constraint: final value of a
applying constraint: bounds on a
applying constraint: bounds on da
applying constraint: bounds on dda
applying constraint: bounds on Δt
This is Ipopt version 3.14.19, running with linear solver MUMPS 5.8.1.
Number of nonzeros in equality constraint Jacobian...: 130578
Number of nonzeros in inequality constraint Jacobian.: 58800
Number of nonzeros in Lagrangian Hessian.............: 196198
Total number of variables............................: 2796
variables with only lower bounds: 0
variables with lower and upper bounds: 246
variables with only upper bounds: 0
Total number of equality constraints.................: 2695
Total number of inequality constraints...............: 1200
inequality constraints with only lower bounds: 0
inequality constraints with lower and upper bounds: 0
inequality constraints with only upper bounds: 1200
iter objective inf_pr inf_du lg(mu) ||d|| lg(rg) alpha_du alpha_pr ls
0 2.2434810e-01 1.80e-01 2.30e-01 0.0 0.00e+00 - 0.00e+00 0.00e+00 0
1 5.1360583e-01 1.65e-01 1.95e+02 -1.4 7.80e-01 0.0 3.96e-01 1.19e-01h 1
2 3.3978388e-01 1.50e-01 1.74e+02 -2.6 9.24e-01 - 1.15e-01 1.04e-01h 1
3 1.5298834e-01 1.41e-01 1.63e+02 -1.4 1.88e+00 - 1.06e-01 6.31e-02f 1
4 1.7494458e-01 1.29e-01 4.47e+01 -2.1 1.72e+00 - 9.03e-02 8.41e-02h 1
<...snip...>
245 1.7381917e-03 3.01e-05 1.70e-02 -4.0 1.37e-02 -2.4 1.00e+00 1.00e+00h 1
246 1.7355438e-03 1.21e-05 1.17e-02 -4.0 1.11e-02 -2.0 1.00e+00 1.00e+00h 1
247 1.7084108e-03 5.16e-05 2.32e-02 -4.0 1.95e-02 -2.4 1.00e+00 1.00e+00h 1
248 1.7080428e-03 2.11e-05 1.73e-02 -4.0 1.68e-02 -2.0 1.00e+00 1.00e+00h 1
249 1.6359863e-03 1.07e-04 3.64e-02 -4.0 3.43e-02 -2.5 1.00e+00 1.00e+00h 1
iter objective inf_pr inf_du lg(mu) ||d|| lg(rg) alpha_du alpha_pr ls
250 1.6487637e-03 4.14e-05 2.81e-02 -4.0 2.77e-02 -2.1 1.00e+00 1.00e+00h 1
Number of Iterations....: 250
(scaled) (unscaled)
Objective...............: 1.6487637480209457e-03 1.6487637480209457e-03
Dual infeasibility......: 2.8069428563796350e-02 2.8069428563796350e-02
Constraint violation....: 4.1350575226820063e-05 4.1350575226820063e-05
Variable bound violation: 0.0000000000000000e+00 0.0000000000000000e+00
Complementarity.........: 1.0000000000000002e-04 1.0000000000000002e-04
Overall NLP error.......: 2.8069428563796350e-02 2.8069428563796350e-02
Number of objective function evaluations = 270
Number of objective gradient evaluations = 251
Number of equality constraint evaluations = 270
Number of inequality constraint evaluations = 270
Number of equality constraint Jacobian evaluations = 251
Number of inequality constraint Jacobian evaluations = 251
Number of Lagrangian Hessian evaluations = 250
Total seconds in IPOPT = 2276.038
EXIT: Maximum Number of Iterations Exceeded.
Let's look at the fidelity in the subspace
fid_leakage = unitary_rollout_fidelity(prob_leakage.trajectory, sys; subspace=op.subspace, drive_name=:a)
println("Fidelity: ", fid_leakage)
@assert fid_leakage > 0.99Fidelity: 0.9999982047329167and plot the result using the plot_unitary_populations function.

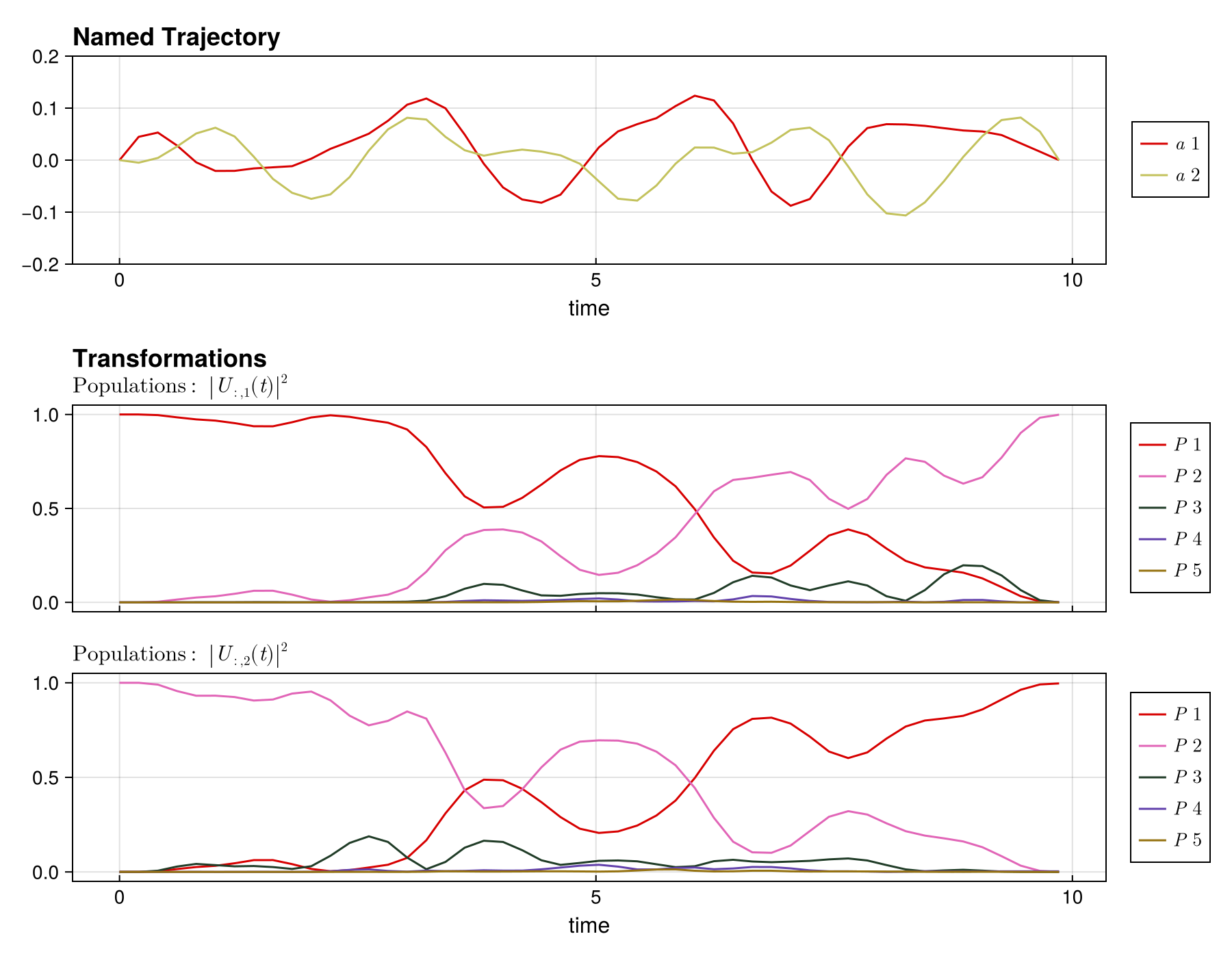

plot_unitary_populations(prob_leakage.trajectory; fig_size=(900, 700), control_name=:a)
Here we can see that the leakage populations have been driven substantially down.
